Oki  |  SKU: D22410B

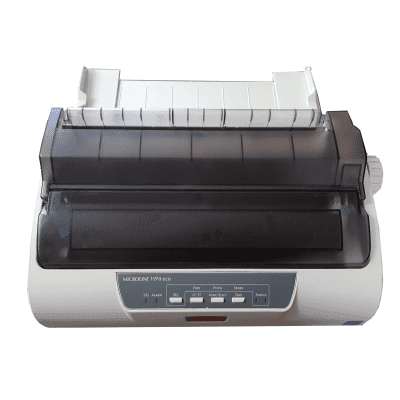

Oki Microline ML1190 Eco 24-Pin Narrow Carriage Dot Matrix Printer - USB / Parallel

£195.00
Tax included Shipping calculated at checkout.

MPN: D22410B
Condition: Refurbished

Oki Microline ML1190 Eco 24-Pin Narrow Carriage Dot Matrix Printer - USB / Parallel - D22410B

Oki Microline ML1190 Eco 24-Pin Narrow Carriage  Dot Matrix Printer - USB / Parallel - D22410B

This version has USB & Parallel interfaces as standard

6 months RTB warranty

Key Features:

Printing Method Serial Impact Dot Matrix Method
Print Head 24 Pin
Dot Wire Diameter 0.2 mm
Print Direction Bidirectional/Unidirectional printing, Short line-seeking printing
Graphic Resolution Max. 360(H) x 360(V) dpi
Print Speed High Speed Draft : 333 cps, Utility : 250 cps, Letter Quality : 83 cps
Line Feed Pitch 4.23mm (1/6 "), 3.18mm (1/8 "), n x 0.42mm(n/60 ") (n=0-127), n x 0.35mm(n/72 ") (n=1-85), n x 0.14mm(n/180 ") (n=0-255), n x 0.12mm(n/216 ") (n=0-255), n x 0.07mm(n/360 ") (n=0-255)
Feed Speed 4.3 inches per second
Feed Rate 4.23mm(1/6) line feed: Approx. 47 milliseconds
Paper Route Tractor feeder (Rear), Tractor feeder (Bottom), Manual (Top)
Character Pitch High Speed Draft : 10.0 cpi, 12.0 cpi
Utility : 10.0 cpi, 12.0 cpi, 15.0 cpi, 17.1 cpi, 20.0 cpi
Letter Quality : 10.0 cpi, 12.0 cpi, 15.0 cpi, 17.1 cpi, 20.0 cpi, Propotional
Printing Width 80 characters/line at ANK 10 cpi
Interface IEEE1284-1994 Bi-directional Parallel, USB 2.0 (Full Speed), RS-232C (25pin)
Emulation ESC/P2 emulation, IBM ProPrinter emulation, IBM AGM emulation
Supported OS Windows Vista, Windows Vista x64, Windows Server 2003, Windows Server 2003 x64
Receive Buffer Max. 64KB
Resident Font Utility, LQ Courier, LQ Roman, LQ Swiss, LQ Swiss Bold, LQ Orator, LQ Prestige, LQ Gothic, OCR-A, OCR-B, High Speed Draft, Scalable Roman, Scalable Courier, Scalable Swiss
Font Style Double Width, Double Height, Enhanced, Emphasized, Bold, Italics, Over score, Outline, Shadow, Underline
1-D Barcode UPC-A, UPC-E, EAN8, EAN13, Code39, Interleaved 2 of 5 (ITF), Code128, POSTNET
Paper Type Continuous paper, Continuous copying paper, Cut sheet, Card, Envelope, Label
Paper Weight Adjustment Manual
Paper Size Continuous paper: Width 76.2-254.0mm x Length 76.2-355.6mm
Single part paper: Width 100.0-257.0mm x Length 100.0-356.0mm
Multi part paper: Width 76.2-254.0mm x Length 76.2-355.6mm
Paper Weight Continuous paper : 52 - 82 gsm
Single part paper : 52 - 90 gsm
Multi part paper : 40 - 58 gsm
Copy Capability Normal print mode: original + 4sheets(Total Thickness < 0.33mm)
Dimensions(WxDxH) 349 x 232 x 150 mm
Operating Environment Operating: 5 - 35 C, 20 - 80 %RH
Storage: -10 - 50 C, 5 - 95 %RH
No condensation
Power Source Single phase 220 - 240 VAC ±10%, 50/60 Hz +/-2%
Power Consumption Operating: Max. -W (ISO10561 (LQ Roman, Range1) Printing Approx. 41W)
Idle: Approx. 6W
Power Save: < 3.0W
Safety& Environment Regulation GS Mark, EMC-Directive, EMC-Directive, CE Mark
Noise Level Operating :Approx. 53 dBA
MTBF(Mean Time Before Failure) 10,000 hours
Ribbon Life Black : 4 million characters
Print Head Life Approx. 300 million strokes/ pin

Warranty Information

6 months RTB warranty.

We stand behind the quality of our products and offer a 6-month return to base warranty to provide you with peace of mind. This warranty covers defects in materials and workmanship during normal usage. If you encounter any issues with your product during the warranty period, simply return it to us and we will repair or replace it at no additional cost to you.

Visit our Warranty page to find out more.
